Lenovo b560 dim display

Post by rahulsan »

Lenovo laptop b560 dim display
Replaced screen
Replaced cable
No sucess

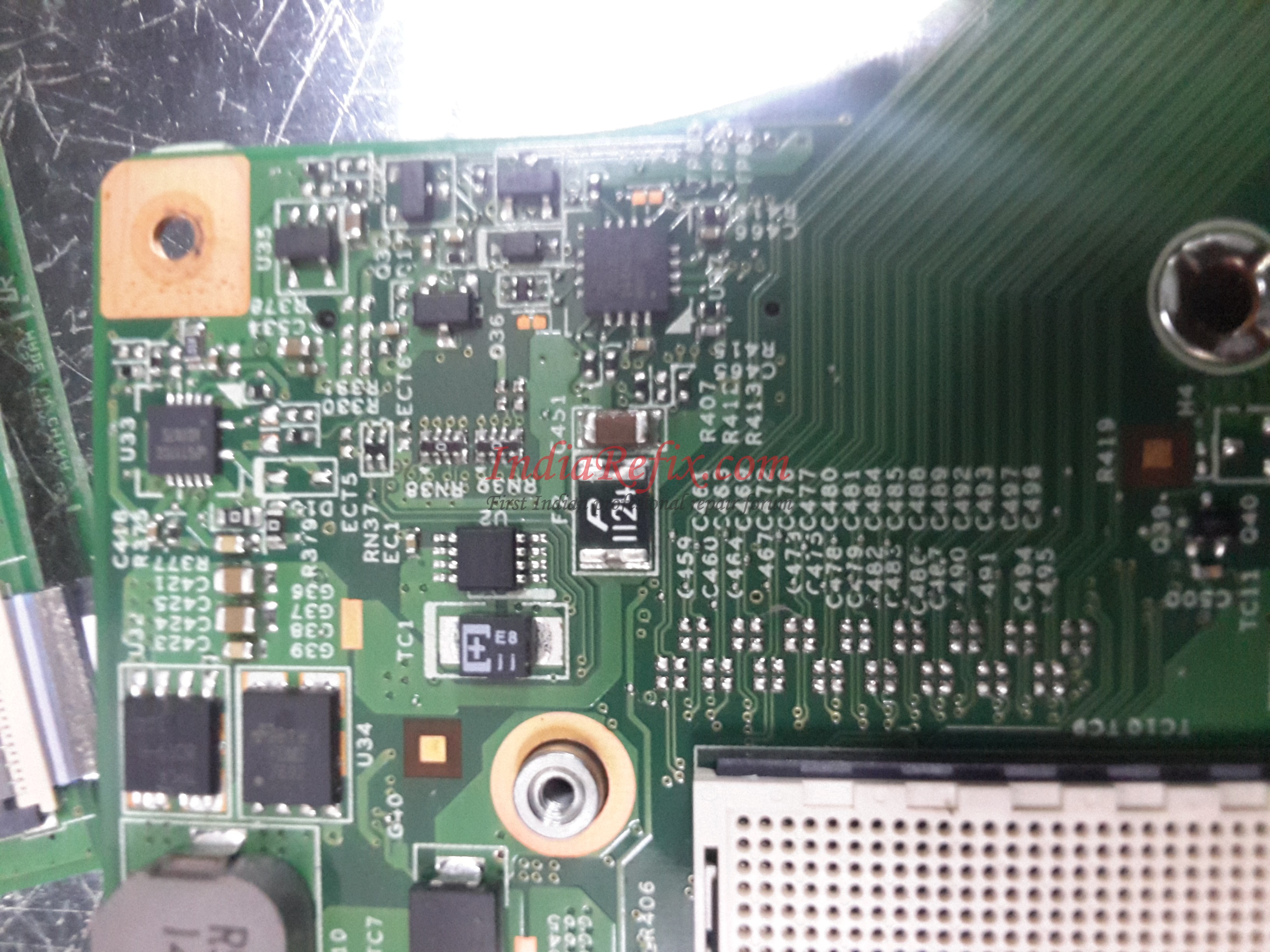

In motherboard lvds f2(fuse) is getting heated

Please help

[ Post made via Android ] Image
Attachments
rahulsan
Member
Member
Posts: 26
Joined: Thu Jun 09, 2016 12:11 pm

Re: Lenovo b560 dim display

Post by rahulsan »

Seems leakage capacitor shows 12ohms

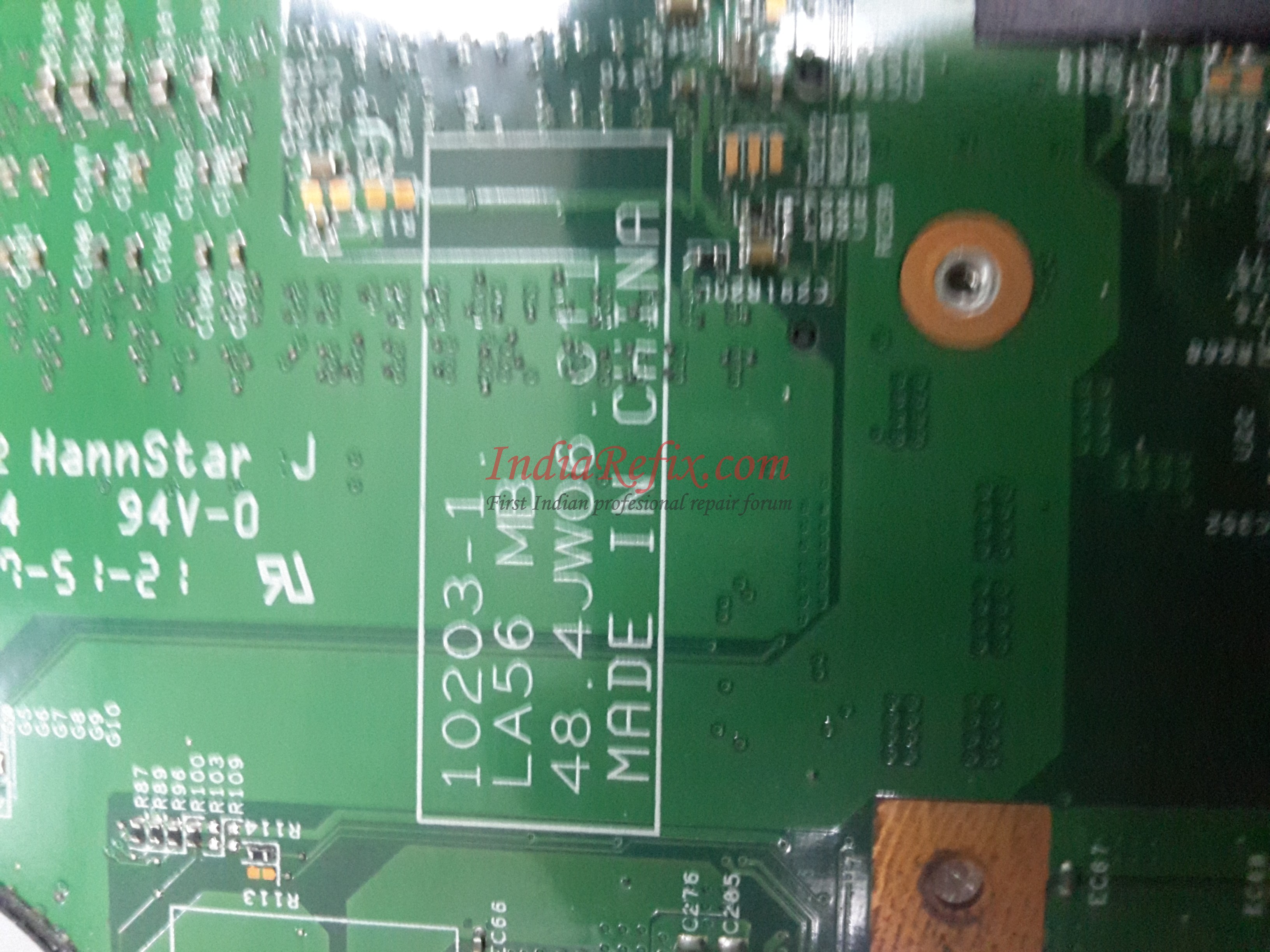

[ Post made via Android ] Image
riyas
Newbie
Newbie
Posts: 2
Joined: Thu Apr 21, 2016 10:36 am

Re: Lenovo b560 dim display

Post by riyas »

first chk display cable for burn internally bcoz main power of lcd 7v to 21v supply shorting.may be problem solve
rahulsan
Member
Member
Posts: 26
Joined: Thu Jun 09, 2016 12:11 pm

Re: Lenovo b560 dim display

Post by rahulsan »

Problem solved 1 cap shorted near lvds fuse

[ Post made via Android ] Image
