Dell 5050 No display ...

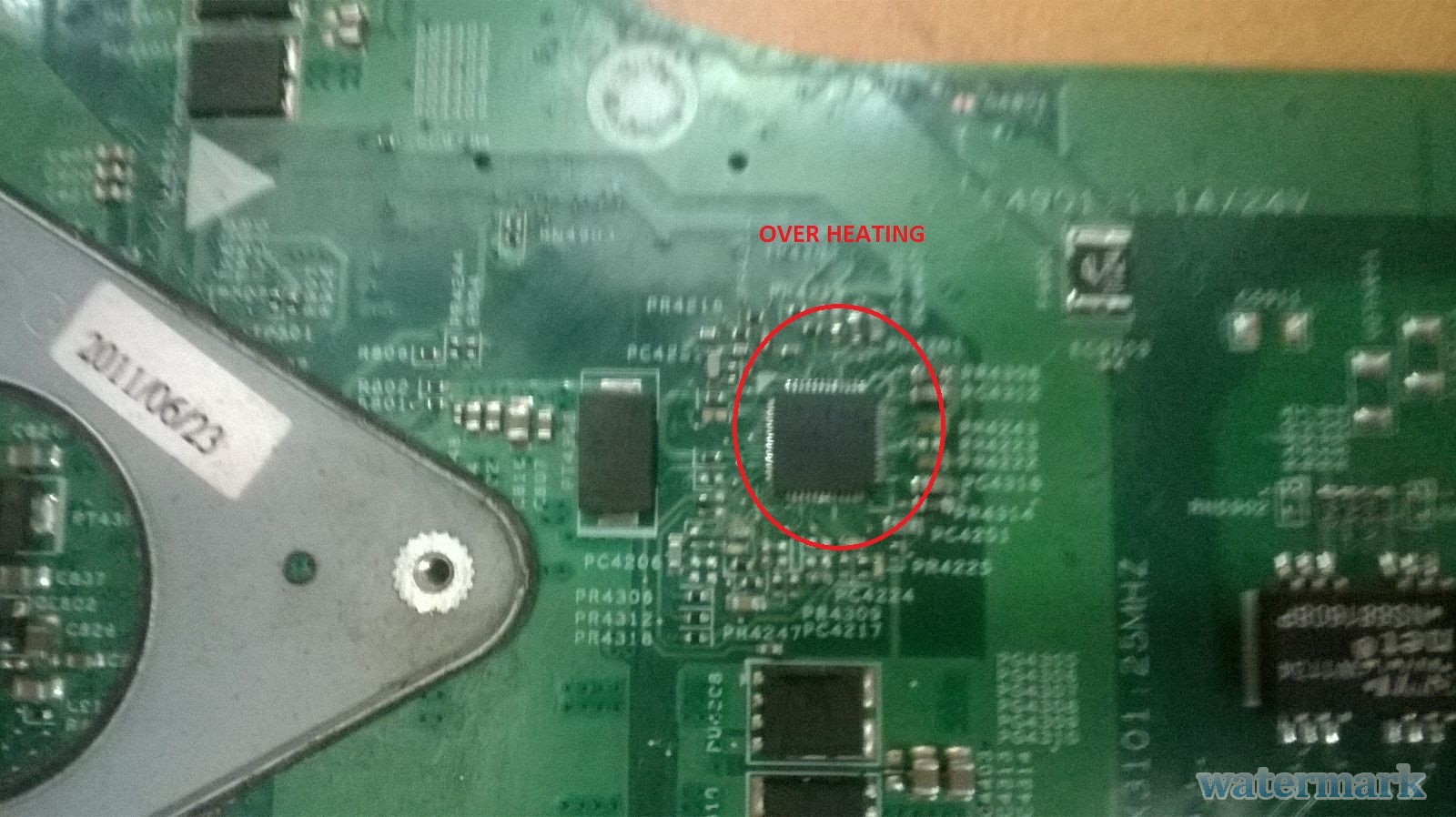

initial Check ...Found Core ISL95831 FRying UP HOT
Chenaged the Core IC ....but the same problem existed ..

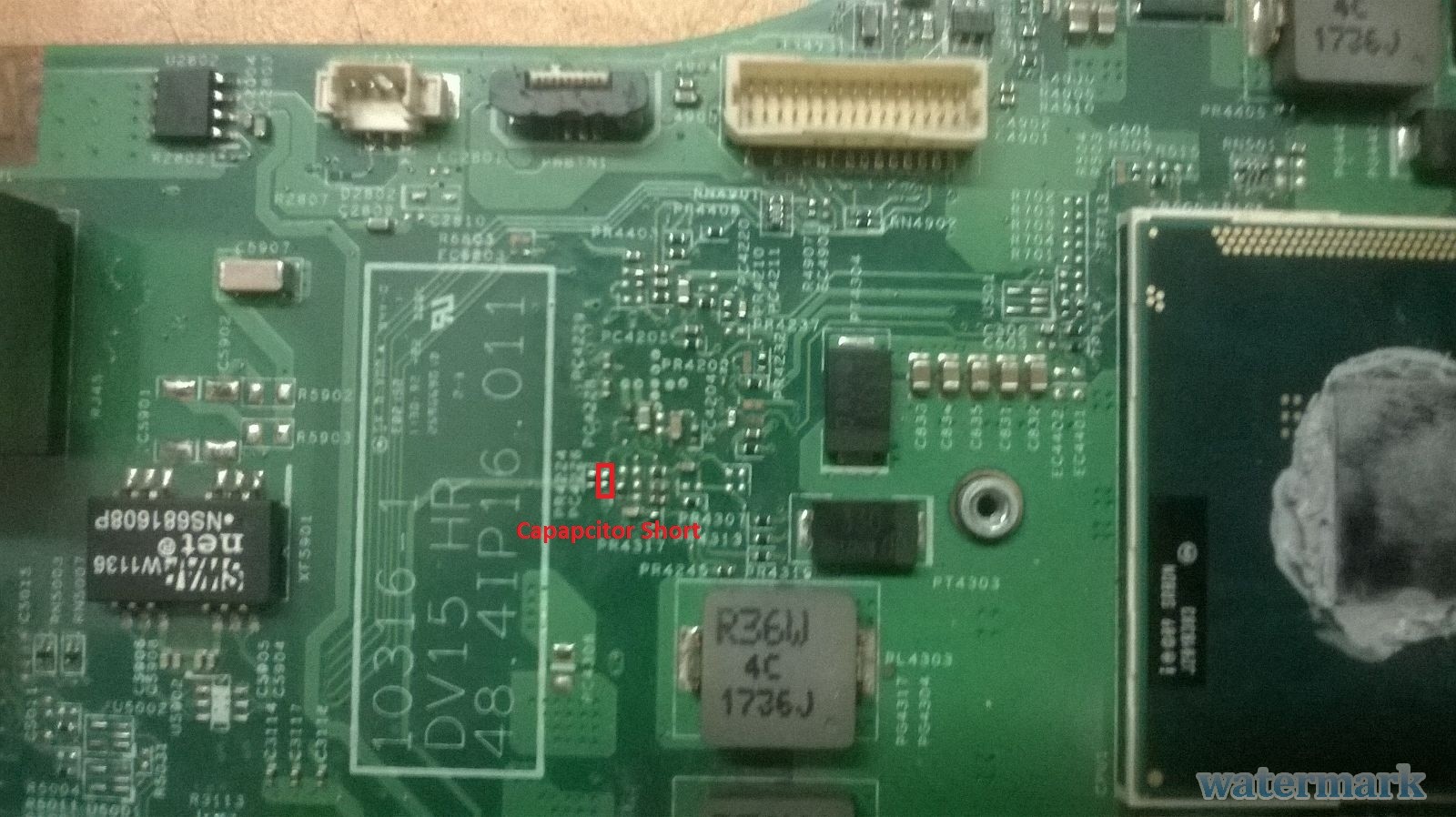

Then Found PC4226 Capacitor Short...
REplaced and
Problem Resolved ....
here are the pics
Dell 5050 No Display Case Study
-
aamkaachaar
- IndiaReFix team
- Posts: 218
- Joined: Sat Jan 16, 2016 2:32 pm
- Location: Techno Tech, Hyderabad INDIA
- Contact:
Dell 5050 No Display Case Study
- Attachments
-
-
-
-
pdewida897
- Guru
- Posts: 235
- Joined: Tue Dec 20, 2016 7:46 pm
Re: Dell 5050 No Display Case Study
GOOOOD JOB
