Lenovo ACLU5 NM-281 Suspended switch remain off

Post by Arun.shspl »

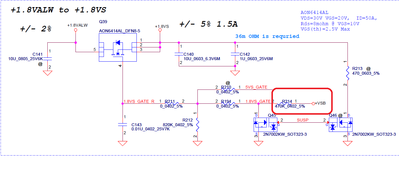

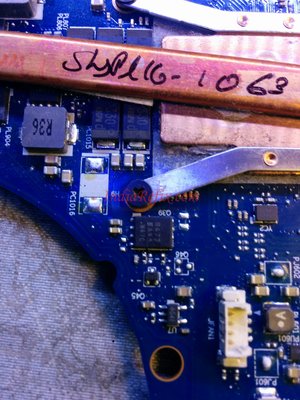

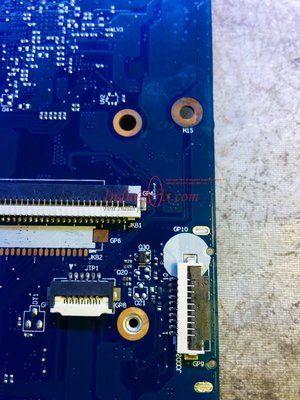

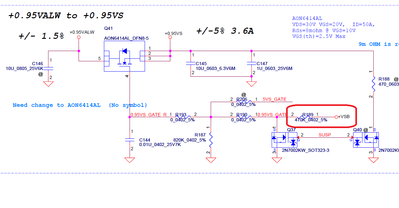

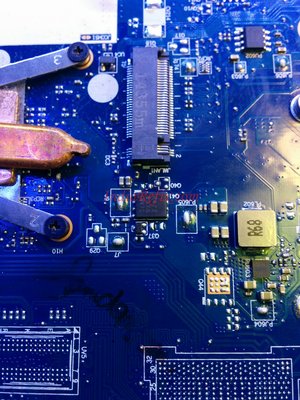

Lenovo motherboard received just on, No display so find suspended supply switch for +1.8VALW to +1.8VS and +0.95VALW to +0.95VS were not switching due to +VSB absence after testing find that +VSB switch is working fine but not reaching to Q39 and Q41 mosfet gates. Finally diagnose the track was open as attached images.

switch Q41.png
Switch Q39.png

User avatar
hames
Newbie
Newbie
Posts: 0
Joined: Thu Jul 21, 2016 8:07 pm

Re: Lenovo ACLU5 NM-281 Suspended switch remain off

Post by hames »

thank you sir
